P3 Cars Analog Gauge - VW Mk7 / MK7.5 Golf GTI (2014-2019) - Right Hand Drive

P3 Cars - V3 2019 Release

NEW FEATURES

• New control box and updated screen bargraph
• Updated harness with streamlined connectors
• Two additional universal analog inputs
• Pre-configured analog inputs for P3 Sensors
• Plug and Play power/ground harness option
• Easy "Upgrade Kit" to convert to full V3 OBD2

Please note all of our P3 products are for Right Hand Drive only.

The P3 Analog Gauge *This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.

 Compatible with All Mk7/Mk7.5 Golf/TDI/GTI/Golf R/Alltrack Models

4 Available Analog Readouts

• Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included
• Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
• Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
• Battery voltage (red wire / black wire - read through power and ground wires)

• optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

Analog gauge base kit includes

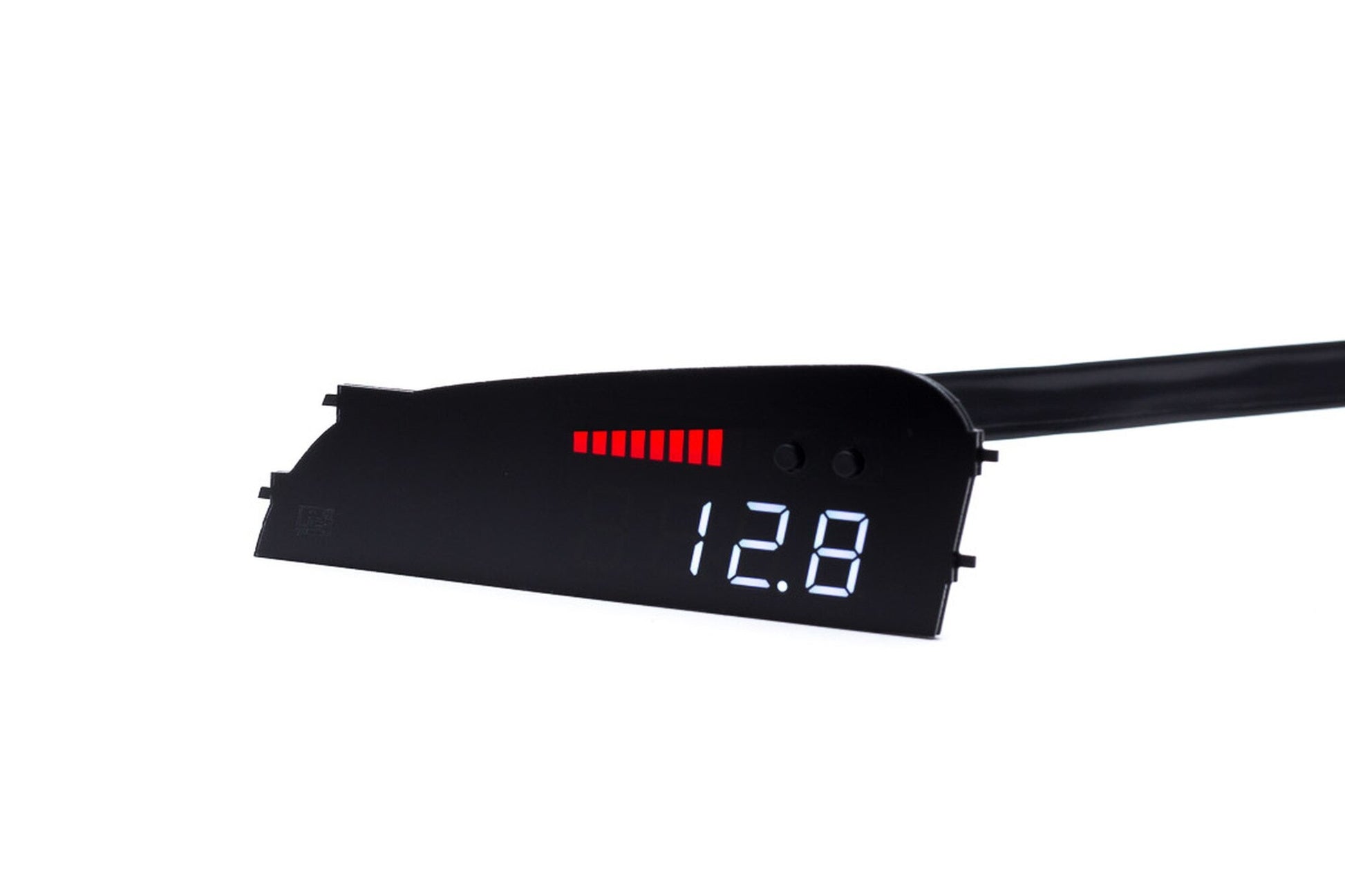

• Integrated display
• Analog Box control unit
• Main harness
• Hard-wire harness
• Analog boost sensor *boost tap not included
• Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
• 3 zip ties
• 2 scotchlok wire taps
